Photogrammetry
The use of photogrammetry, powered by 360° camera technology, enables us to digitally capture, upload, and share on-site progress and as-built information. This approach enhances workflow, collaboration, and transparency by creating a digital replica of our installations at the construction site.
This technology allows for real-time, 360° documentation of existing site conditions, which can be shared with main contractors and stakeholders. It also supports confident project handovers by providing detailed, as-built documentation. Additionally, offline copies of the virtual 360° site can be downloaded and distributed for stakeholder reference and project records.
This technology has the potential to significantly reduce paperwork by encouraging stakeholders to adopt a digitized approach to work inspections. By replacing traditional, time-consuming, and resource-heavy paper-based processes with digital records of completed installations, we can streamline operations and enhance overall efficiency.
The Process
As part of JWL’s BIM methodology for documenting site construction progress, QA/QC snags, inspection photos, and as-built records, we utilize the StructionSite platform along with 360° camera technology. This approach ensures accurate and reliable documentation of site changes compared to drawings generated from our BIM models.
This process has proven to be highly efficient for MEP works and is estimated to be 90–95% more cost-effective compared to traditional laser scanning methods.
For hardware, JWL uses the GARMIN VIRB to capture 360° photos and videos. We leverage the StructionSite platform for reality capture and collaboration, in combination with Navisworks. When needed, Cupix is also used to generate point clouds for precise measurement checks and dimensioning.

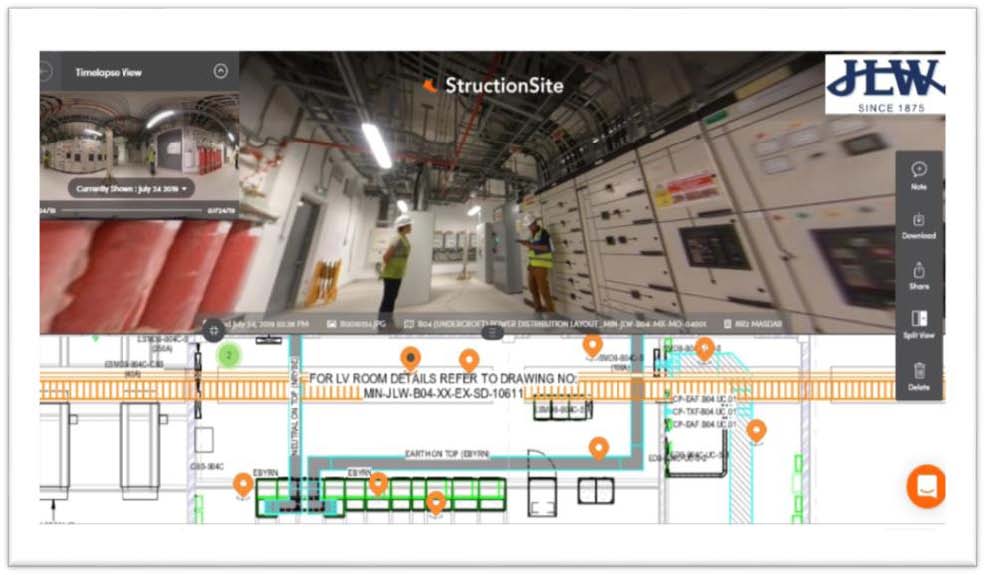

Utilizing photogrammetry for camera positioning and 360° visualization on a sustainable neighborhood development project.

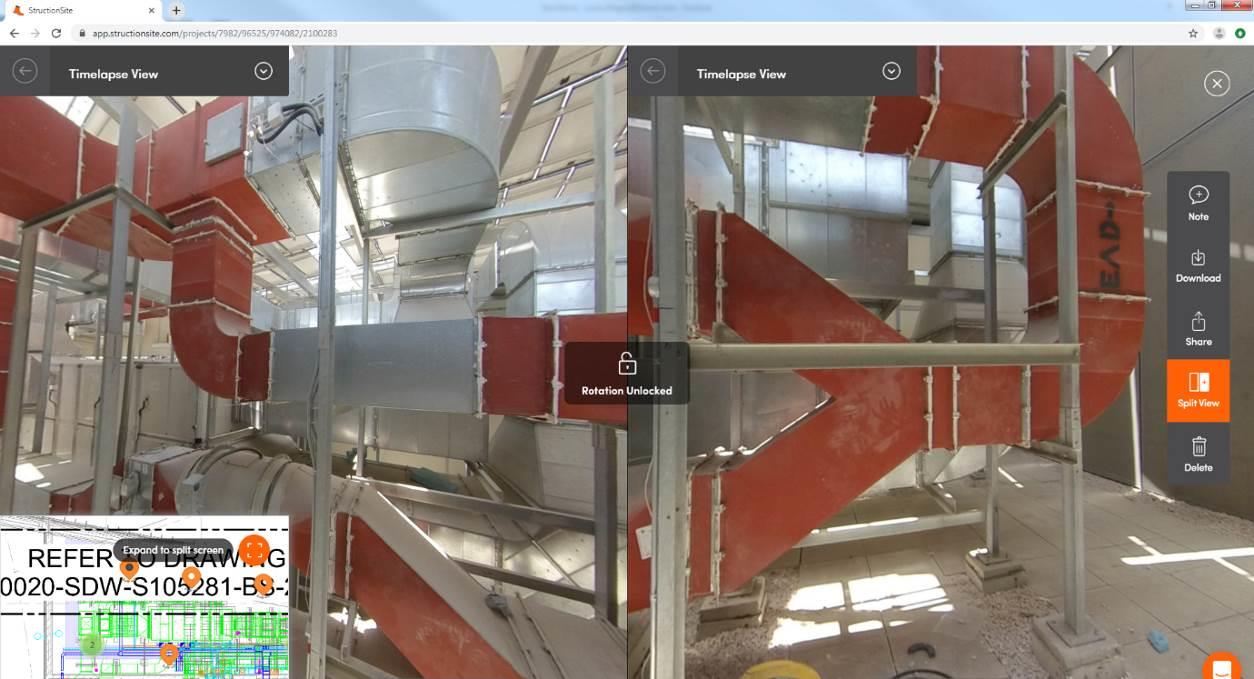

Using photogrammetry to update our as-built Revit models on a sustainable neighborhood project.
